Exhaust fans
Axial Wall Mount

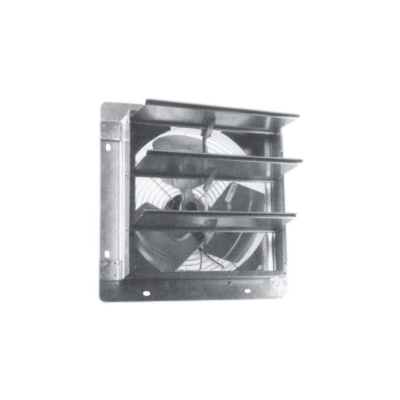

Axial Wall Mount Fan – Standard with Shutter (REPRSM)
Axial Wall Mount Fan – Standard with Shutter
(REPRSM)
OSHA rear guard, completely assembled. For low ventilation requirements.
Air Volume:
30 – 3,215 cfm
Maximum SP:
0.28" wg. @ standard air density
Contact Sales Rep
Features
Resources
Models
Features
OSHA rear guard standard
Totally enclosed 115 volt motor
Built in shutter
Completely assembled for easy installation
Shutters are constructed of a galvanized frame with aluminum blades
Propellers from 7" to 18" are constructed of aluminum blades with plated steel center
24" propellers are all galvanized
Resources
Drawings
Submittal Drawing DWG
Submittal Drawing PDF
Revit Model
Additional Information
Frequently Asked Fan Questions
Engineering Data
Performance Curves
REPRSM7
REPRSM10
REPRSM12
REPRSM16
REPRSM18
REPRSM24
Performance Table
Sound data
Models
REPRSM7
Direct Drive Wall Prop Fan 1/30 hp with 7" Prop & Built in Shutter
REPRSM10
Direct Drive Wall Prop Fan 1/30 hp with 10" Prop & Built in Shutter
REPRSM12
Direct Drive Wall Prop Fan 1/30 hp with 12" Prop & Built in Shutter
REPRSM16
Direct Drive Wall Prop Fan 1/20 hp with 16" Prop & Built in Shutter
REPRSM18
Direct Drive Wall Prop Fan 1/15 hp with 18" Prop & Built in Shutter
REPRSM24
Direct Drive Wall Prop Fan 1/4 hp with 24" Prop & Built in Shutter
