Exhaust fans Axial Roof Mount BELT DRIVE UPBLAST TUBEAXIAL ROOF EXHAUSTER
RPTUB-RA

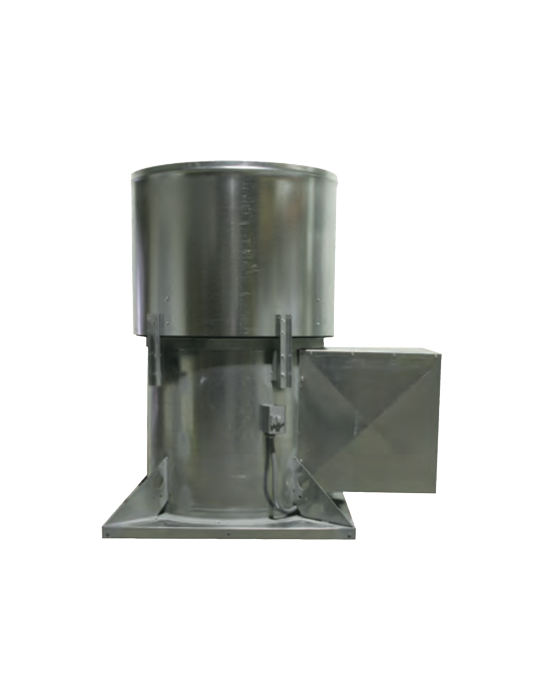

BELT DRIVE UPBLAST TUBEAXIAL ROOF EXHAUSTER

(RPTUB-RA)

Heavy gauge galvanized steel construction, single venturi. For high exhaust airflows where motor is mounted outside the airstream.

  • Air Volume: 4,350 – 48,000 cfm
  • Maximum SP: 1" wg. @ standard air density
Contact Sales Rep

Features

  1. Wind band construction is heavy gauge galvanized steel
  2. Wind band channels provide lateral rigidity
  3. Butterfly construction is galvanized steel
  4. Water trough to drain water and melting snow and ice
  5. Aluminum airfoil propeller
  6. Non-overloading design for safe operation
  7. Precision balanced for smooth vibration free operation
  8. Motor outside of the airstream
  9. Disconnect switch
  10. Permanently lubricated pillow block bearings rated at L50 life of 200,000 hours

Options

  1. Roof curbs
  2. Outlet guard
  3. Inspection door
  4. Magnetic latch with cushion close

Certifications

RuppAir certifies that Models RPTUB24-RA thru RPTUB60-RA are ETL Listed under file numbers 102628244PRT-001 and comply with UL705 (electrical). Standards and CSA Std C22.2, No 113.

Catalog #109R

March 2009

Resources

Models

  1. RPTUB24-RA 24" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  2. RPTUB30-RA 30" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  3. RPTUB36-RA 36" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  4. RPTUB42-RA 42" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  5. RPTUB48-RA 48" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  6. RPTUB54-RA 54" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
  7. RPTUB60-RA 60" Aluminum Propeller Fan For Applications Requiring Large Air Volumes In Commercial & Industrial Applications which have higher static pressure. Motor & drives are outside the airstream. Lead Time 3 Weeks.
